Description
earthquaker pedals EarthQuaker Devices Zoar Dynamic Audio Grinder DistortionBrand New. Authorized Dealer. This is a custom color Zoar made for Stompbox Supply. Black with Cream graphics. From the manufacturer: ZoarDynamic Audio Grinder Zoar is a medium high gain discrete distortion (using only transistors; no opamps or diodes in here!) that has that touch sensitive amp like quality to it that everyone craves. It has been finely tuned to create a highly tweakable hi fi and modern sounding distortion, but with the ghosts of old
Brand New. Authorized Dealer.

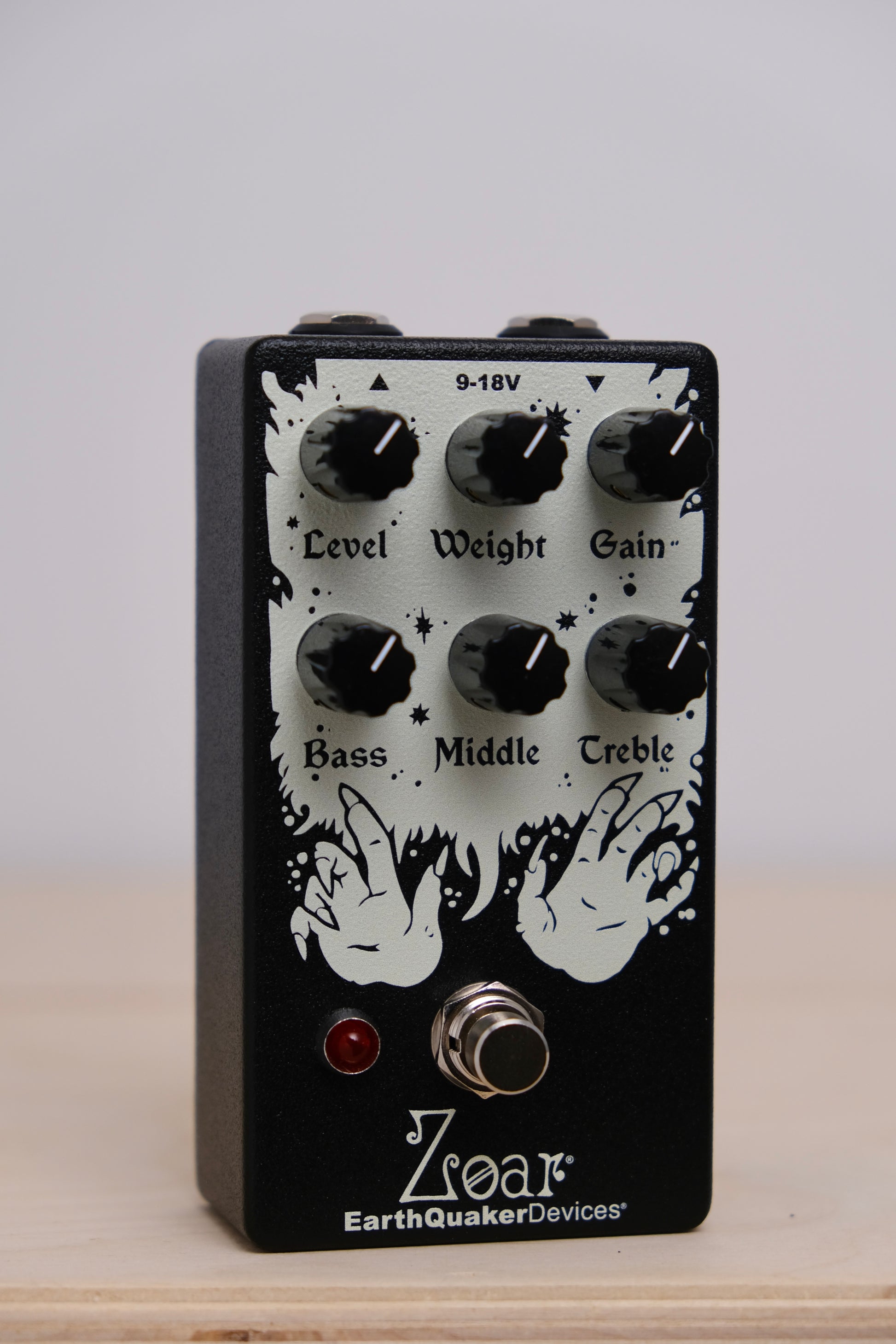

This is a custom color Zoar made for Stompbox Supply. Black with Cream graphics.
From the manufacturer:
Zoar®
Dynamic Audio Grinder
Zoar is a medium-high gain discrete distortion (using only transistors; no opamps or diodes in here!) that has that touch sensitive amp-like quality to it that everyone craves. It has been finely tuned to create a highly tweakable hi-fi and modern sounding distortion, but with the ghosts of old school circuitry to deliver a grind that is both instantly familiar and delightfully unique. Want that defined sparkle and tightness of an overdrive? This has it. Want that low-medium gain fuzz that’s perfect for drop tuned guitars and basses? This has it. Want to be able to dial in and control every nuance of your tone from jangly on-the-verge of break up to blowing the walls out heavy saturation? Then this is the pedal for you.
Customize Your Sound
This meticulously crafted box has six knobs that allow you to truly customize your sound with the Level, Weight, Gain, Bass, Middle, and Treble controls. The red LED light indicates when the distortion is activated by the Flexi-Switch® enabled footswitch.
The Gain control on Zoar goes from the edge of break up all the way over the cliff into the crunchy, grinding abyss. The character of the distortion is heavily dependent on the setting of the Weight control as well as your guitar’s pickup type, and it is further fine-tuned by the EQ section.
Touch-Sensitive Controls
While having its roots in a very familiar past, the passive 3-band EQ has been finely tuned for modern tones. While this style of tone shaping seems simple on the surface, it is deceptively complex and highly interactive.
The 3-band EQ and Gain controls give you nearly unlimited options with great focus and sensitive precision, but the real powerhouse of Zoar is the Weight control. This control dictates the amount of low end that is passed into the circuit, thus controlling the entire character of the pedal. From a mere clean boost to a high gain distortion to overdrive to the crispy Hi-Fi fuzz territory, this function gives you everything.
The Level control hits unity gain around noon, but this is dependent on where the other controls are set. In addition to controlling the output volume, it also plays a small part in the controlling the voice of Zoar. By adjusting the Levelcontrol with any combination of EQ (boosting the frequency bands and cutting the output volume), you can achieve drastically different curves that have the feel of the more traditional low pass filter type tone control.
Frequency Response
Snapshot of frequency response with all controls set at noon.
Running Zoar at 18v
Want to elevate your sonic spirit to a higher level? Try running Zoar at higher voltage! Zoar can handle power up to 18v DC. Higher voltages will yield a different frequency response with more defined dynamics and a faster response. When powered at 18v, the range of clean tones are widened, dirty tones become punchier with better note articulation, low frequencies are tightened, the Treblecontrol will cover a broader spectrum without becoming harsh and the output volume nearly doubles! The experience is not unlike plugging into a wall of high wattage tube amplifiers!
Controls:
Level: Adjusts the output volume.
Weight: This is an input frequency control that changes the voice and saturation of the distortion. Turning Weight clockwise allows more low frequencies to pass through. This increases the gain, allows lower frequencies to clip faster and can shift the tone of the pedal from tight distortion to a loose fuzz.
Gain: Turn clockwise to increase distortion. This adjusts the transistor bias. A little static sound when turning is completely normal.
Bass: Passive bass control, adjusts the low frequency content between 0 and 800Hz +/- 15dB.
Middle: Passive middle control, adjusts the midrange frequency content between 500Hz and 3kHz +/- 10dB.
Treble: Passive treble control, adjusts the high frequency content between 1kHz and 10kHz +/-15dB.
Tech Specs:
Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 10 mA
Input Impedance: 1 MΩ
Output Impedance: <10 kΩ
Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
-
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
-
For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Ledges is buffered bypass with tails. Power is required to pass signal.
Power
This device takes a 9-18 volt DC power supply with a standard 2.1mm negative center barrel plug. We recommend using a pedal-specific, transformer-isolated, wall-wart power supply or a power supply with multiple isolated-outputs. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not always filter dirty power and may result in unwanted noise. DO NOT POWER THE ZOAR HIGHER THAN 18V!
Artwork
Artwork by Dave Neeson.
